Designers and Manufacturers of Foam Packs, Crates and Flight Cases

Corrugated and Solid board Cartons

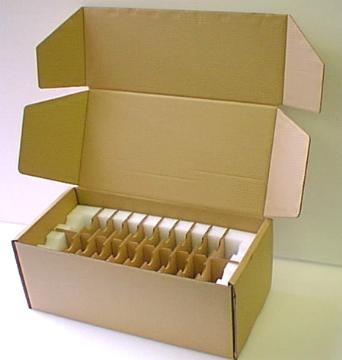

We can produce cartons to any of the FEFCO styles and in many materials from lightweight E Flute through to Triwall - including all Standard and Export Quality grades of Board. We carry a range of "Stock sized Cartons " from stock - or we can produce Cartons to your own bespoke specifiations. We can also build custom foam inserts to suit Bespoke or Stock Cartons.

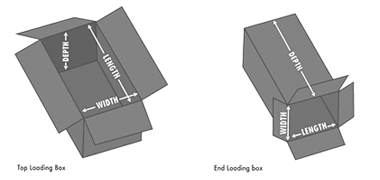

When measuring a box / carton - always measure Length x Width x Height as shown below INTERNALLY - this is the industry standard. We always supply quotations for internal dimensions to ensure a good fit on your product or our foam inside the box.



Popular "Fefco Styles" of Carton ( Standard styles of Cartons )

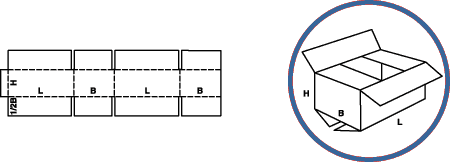

0201 style

This is a standard carton to most people with flaps at both ends of the case which meet in the middle when closed

0200 style

This style has flaps at one end only and is commonly used to put down over the top of your product to sit  on a Pallet

0203 style

Fully overlapping End and side Flaps on this style make it very tough for heavy weights as it has extra reinforcement rather than an open joint.

0300 style box and lid

Diecut Box and lid in a similar style to a shoe box. Can be made as a shallow lid or full height

0421 style diecut

Hinged Lid Diecut style which folds up and has a tuck in lid on the top of the carton ( No side flaps )

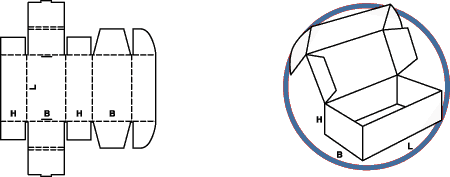

0427 style diecut

Hinged lid diecut carton - but this one has side flaps and an extra flap which locks into the front of the box

Cartons from our Stock Range - always available

Stock Cartons

SC1             Stock Carton 18 x 18 x 18 D/W
SC10          Stock Carton 12 x 9 x 6 S/W
SC11          Stock Carton 9 x 6 x 6 S/W
SC12          Stock Carton 12" x 12" x 12" D/W
SC13          Stock Carton 23" x 16" x 12" D/W
SC15          Stock Carton 30" x 20" x 20" D/W
SC16          Stock Carton 12"x 9" x 9" D/W
SC17          Stock Carton 20" x 20" x 20" D/W
SC18          Stock Carton 18" x 18" x 14" D/W
SC2             Stock Carton 24" x 18" x 18" D/W
SC20          Stock Carton 16" x 16" x 16" D/W
SC22          Stock Carton 18" x 18" x 12" D/W
SC23          Stock Carton 6" x 6" x 6"S/W
SC3             Stock Carton 30" x 18" x 18" D/W
SC5             Stock Carton 19 x 12 x 12 D/W
SC6             Stock Carton 14 x 14 x 14 D/W
SC7             Stock Carton 24 x 24 x 24 D/W
SC8             Stock Carton 12 x 9 x 9 S/W
SCOVERRUN2   500 x 305 x 125 S/W
SCOVERRUN3   380 x 153 x 190 D/W

Cartons we can supply ....

Printed Cartons
We can offer single colour Flexo print right through all types of digital print ( Minimum order quantities and Artwork and Print Plates may apply)
Flexo Printed cartons
Like the outer cartons found in supermarkets .Flexo is the cheapest Print method Screen Print A High Quality Print usually used on White boxes for low runs. Quite expensive
Litho Print
Photographic quality print used on Software Boxes etc. High runs required - but top quality .

Materials used include
* All B C & E Flute Single wall boards ( Light Duty )
* All BC Grade Double wall boards ( Medium Duty )
* All CA and AA Grade of Boards ( Heavy Export Quality )
 * Triwall ( The top of the range Export Quality Board )
